Deadbolt: 2 throws | Projection: 20mm

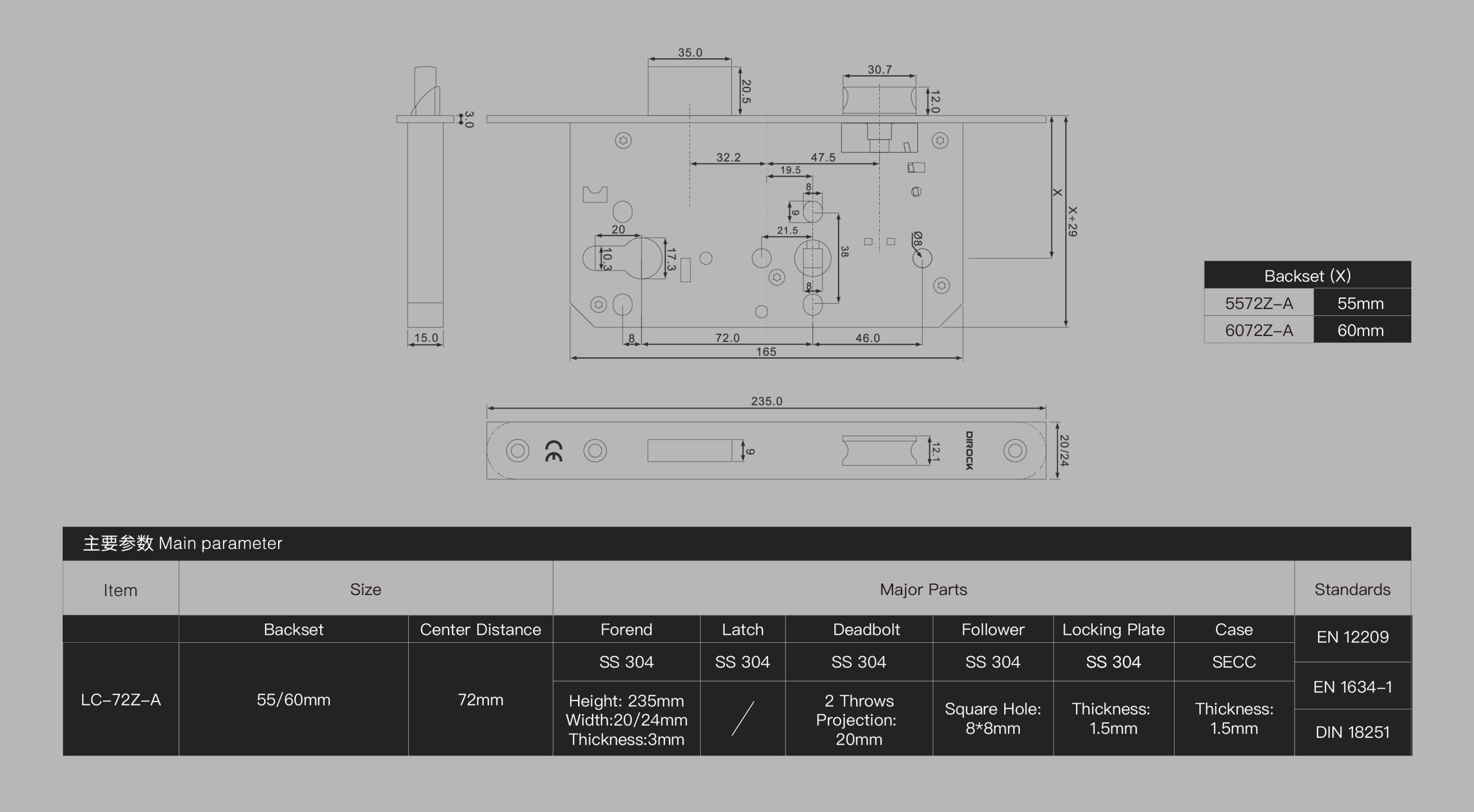

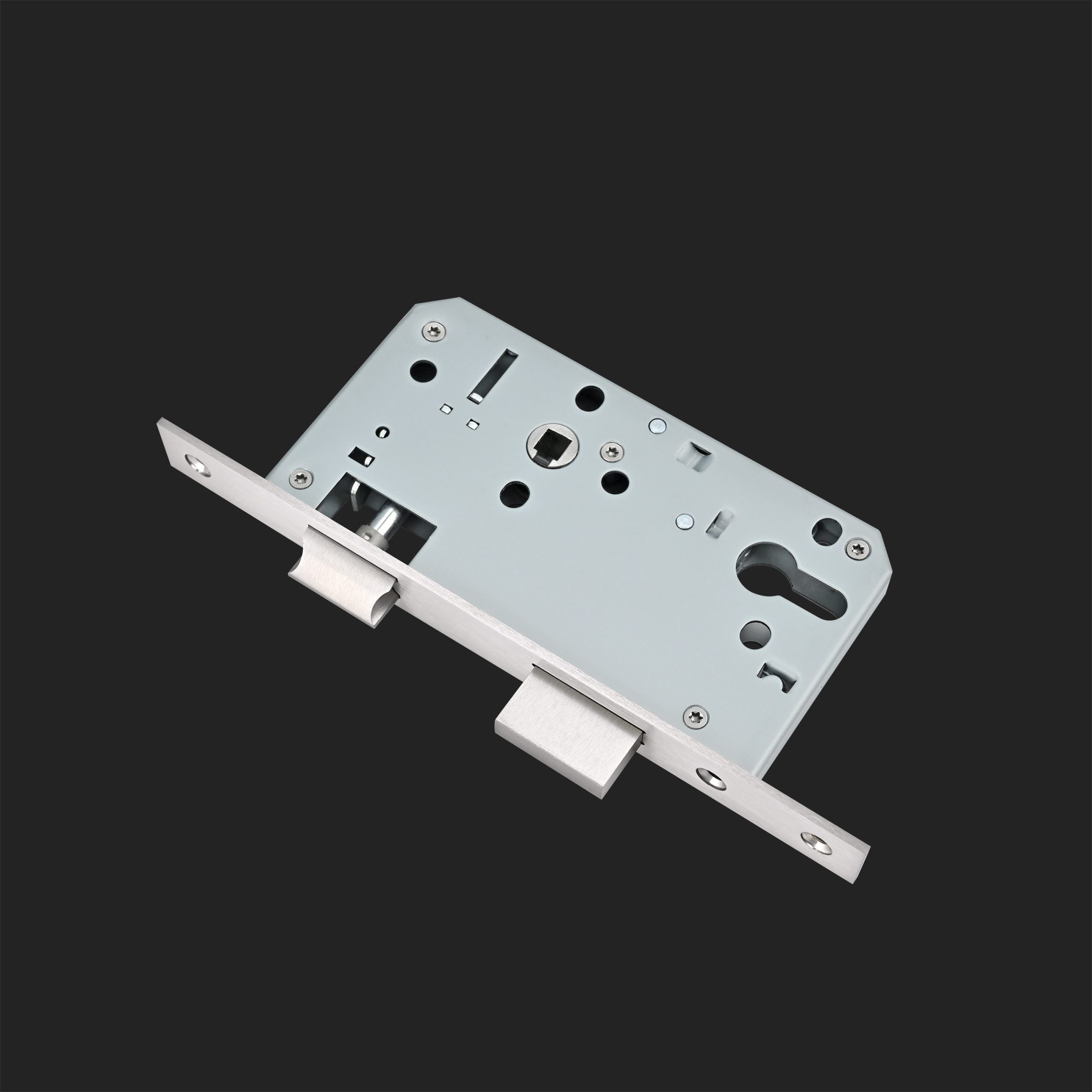

LC-72Z-A

Backset
55/60MM



Center Distance
72MM



Forend
SS304 | Height: 235MM | Width: 20/24MM | Thickness: 3MM



Latch
SS304



Deadbolt
SS304 | 2 Throws | Projection: 20MM



Follower
SS304 | Square Hole: 8*8MM



Locking Plate
SS304 | Thickness: 1.5MM



Case
SECC | Thickness: 1.5MM



Fire Test
Steel Fire Door: 240mins

Timber Fire Door: 30/60/90/120mins
